AC CLAMP METER

AC Tong Tester Analogue Type

MODEL NO	A. C. CURRENT	A. C. VOLTAGE
R7VA1 R7VA2 R7VA3 R4A2V R2A3V1 R2A3V2 R7A	0-10/30/100/300/1000A 0-10/25/100/250/1000A 0-50/100/250/500/1000A 0-50/100/200/400A 0-60/300A 0-25/125A 0-10/25/50/100/250/500/1000A	0-300/600V 0-300/600V 0-300/600V 0-300/600V 0-150/300/600V 0-150/300/600V N.A.



Technical Details

• Accuracy : +/- 5% F.S.D. for Current, +/- 3% F.S.D. for Voltage
• Calibration : 50Hz, A.C. Supply
• Scale Length : 50mm (approx.)
• Core Gap : 55mm Maximum (approx.)
• Dimensions (In mm) : 330 x 99 x 88 (approx.)
• Weight : 1.6 Kg (approx.)

Electrical Specifications

• H. V. Test : 2KV AC (rms) for 1 min.
• Insulation Resistance Test : Over 20 Megohms at 500 V DC

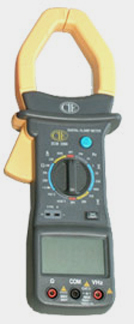

Digital Clamp Meter - Model : DCM 2350

Application

With Frequency, Temperature, Voltage, Resistance, Diode & Audible continuity testing.

Salient Features

• Accurate
• Reliable
• Safe
• Easy to Use
• Attractive Look
• Large LCD For Easy Reading
• Back Light Display
• Data Hold Facility
• Low Battery Indication
• Diode & Audible Continuity Test Facility

Standard Accessories

Operator’s Instruction manual, set of test leads, "K" Type Thermocouple, 9 volt battery & Plastic Carrying Box.

Technical Specifications

• Display : 3½ Digit, 1999 counts, liquid Crystal Display
• Jaw opening capability : 55mm (max. conductor size)
• DC VOLTAGE : 2V / 20V / 200V / 1000V
• AC VOLTAGE : 200V / 750V
• AC CURRENT : 20A / 200A / 1000A
• RESISTANCE : 200 OHM / 20K OHM / 2 M OHM
• TEMPERATURE : 0ºC TO 750ºC
• FREQUENCY : 2 kHz , 20 kHz

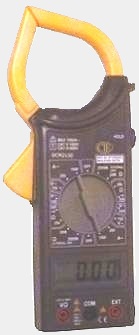

Digital Clamp Meter - Model : DCM 2150 Series (2150, 2150T, 2150F)

Salient Features

Accessories for Model : 2150 / 2150T / 2150F

Test Leads, Battery : 9V 6F22 or Equivalent, Operation Manual, Temperature probe (for DCM 2150T only)

General Specifications for Model : 2150 / 2150T / 2150F

• Display : 3½ Digit LCD, with automatic polarity indication
• Measuring Method : Dual - Slope integration A-D Converter
• Overrange Indication : *1* Figure only in the display
• Polarity Indication : *-* displayed for negative polarity
• Operating Temperature : 0ºC to 40ºC (32ºF to 104ºF)
• Storage Environment : -10ºC to 50ºC (14ºF to 122ºF)
• Power : 9V alkaline or carbon zink battery (6F22 or equivalent)
• Low Battery Indication : *BAT* to left of display
• Dimensions : 96 (W) x 235 (D) x 46 (H) mm
• Weight : 330g (including battery) approx

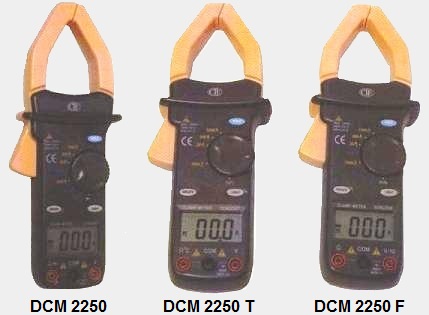

Digital Clamp Meter - Model : DCM 2250 Series (2250, 2250T, 2250F)

Model : 2250 / 2250T / 2250F

* Accurate * Reliable * Safe * Easy to use * Attractive Look * Large LCD for Easy Reading * Back Light Display * 3½ Digits, Liquid Crystal Display * Data Hold Facility

Salient Features

• AC Current : 20 / 200 / 1000A
• ACV : 750V
• DCV : 1000V
• Resistance : 200 / 2000 ohm
• Audible ContinuityTest Facility
• Temperature : 0º to 750ºC (In DCM-2250T only)
• Frequency : 2kHz (In DCM-2250F only)

Accessories for Model : 2250 / 2250T / 2250F

Operator's Instruction Manual, Set of Test Leads, "K" type thermocouple (For 2250T only), Plastic Carrying Case, 9 volt battery, NEDA 1604 6F22 006P type.

General Specifications for Model : 2250 / 2250T / 2250F

• Display : LCD 1999 counts. Updates 2-3 / Sec.
• Polarity Indication : *-* displayed for negative polarity
• Overrange Indication : *1* Figure only in the display
• Jaw Opening Capability : 42mm (Max conductor size)
• Storage Temperature : -10ºC to 50ºC (14ºF to 122ºF)
• Power : Battery 9V. NEDA 1604 6F 22 006P
• Low Battery Indication : *-+* appears on the display
• Operating Environment : 0ºC to 40ºC
• Size : 250mm x 99mm x 43mm
• Weight : Approx 460g.
