DIGITAL MULTIMETER

Model : DM 325

Application

With Frequency, Temperature, Voltage, Resistance, Diode & Audible continuity testing.

Special Features
  • Secondary Injection Moulded Case
  • VAC, VDC, mVDC
  • ohms, Capacitance, Frequency (upto 100kHz)
  • AC / DC amps, AC / DC milliamps, AC / DC micro-amps
  • Temperature ( -50*C - 100*C )
  • Relative mode
  • DATA Hold
Standard Accessories
  • Testing Leads - 1 pair
  • 1.5V "AAA" Battery - 3 Nos.
  • Operator"s Instruction Manual - 1No
  • Temp. Probe (K type bead Thermocouple ) - 1No.
General Specifications
  • Display : 3¾ Digits, LCD Display . Automatic Indication of functions & symbols
  • Range Selections : Automatic & Manual
  • Over Range Indication : LCD will display "OL"
  • Low Battery Indication : The *±* is displayed when the battery is under the proper operation range.
  • Polarity Indication : *_* displayed automatically
  • Operating Temperature : 0 - 40ºC, 32ºF - 122ºF (<80% RH, <10ºC non-condencing)
  • STORAGE TEMPERATURE : -10 - 60ºC, 14ºF - 140ºF (<70% RH, battery removed )
  • Fuse Protection : uA and mA : F500 / mA / 250V 5X20, A:F 10A / 250V 6.3X32.
  • Sample Range : 3 times / sec for digital data
  • Power Source : 4.5V
  • Battery Type : AAA 1.5V.
  • Dimensions : 185(L) X 87 (W) X53 (H) mm.
  • Weight : 360g. Approx (Battery Included).

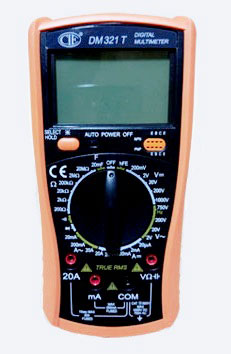

DIGITAL MULTIMETER

Model : DM 321 T

Standard Accessories
  • 31/2 Digits
  • TRUE RMS
  • Manual Ranging WITH HOLSTER AUTO POWER OFF
  • DATA HOLD & BACK LIGHT
  • A/V CONTINUITY TEST
  • Auto Rang. CAPACITANCE Test
  • Tr., hFE TEST
SPECIFICATIONS
  • DC Voltage :
    Range200 mV, 2 V, 20 V, 200 V, 1000 V
    Basic Accuracy ± (0.5 % rdg + 3 digits)
  • AC voltage (TRUE RMS) :
    Range
    2 V, 20 V, 200 V, 750 V
    Basic Accuracy
    ± (0.8 % rdg + 5 digits)
    Freq. Response : 40 ~ 400 Hz (750 V Range : 40 ~ 200 Hz)
  • DC current :
    Range 20 pA, 2 mA, 20mA, 200 mA, 20 A
    Basic Accuracy ± (0.8% rdg + 10 digits)
  • AC current (TRUE RMS):
    Range 20mA, 200 mA, 20 A
    Basic Accuracy
    ±(1.0% rdg+ 15 digits)
    Freq. Response : 40 ~ 200 Hz
  • Resistance :
    Range 200 , 2 K , 20 K , 200 K , 2 M , 20 M
    Basic Accuracy ± (0.8% rdg + 3 digits)
  • Capacitance :
    Range 2 nF~ 20mF
    Basic Accuracy ± (2.5 % rdg + 20 digits)
  • DCV & ACV Input Impedance : 10 M
  • Transistor Test : hFE (PNP or NPN)
  • Continuity Test & Diode Test : Provided
  • Other Facilities / Features : Auto Power Off. Low Batt, Indication
  • Accessories Supplied : Test Leads, User Manual & Battery (Installed / Kept Aside)
  • Dimension & Weight : 175 x 93 x 55 mm & Approx. 400 gms. (incl. Batt.)

* All Specifications & appearances are subject to change without prior notice
